SeaVac by InterVac · Marine central vacuums

A built-in vacuum for the cabin of your boat.

SeaVac is InterVac’s marine range — dry central vacuums for cabin boats under 30 feet. The power unit is built in or tucked away, the hose reaches the whole cabin, and the dirt goes into a sealed bag in the power unit.

Clean made Simple®

Choose your SeaVac Read the dry-use rule
4SeaVac models
35+ ftStretch hose
32 mmStandard tool kits
2 yrUnit warranty
Vacuuming the cabin seating of a boat with a built-in central vacuum hose

Read this before you buy

SeaVac is a dry vacuum.

It is built for the dry dirt a cabin collects — sand, crumbs, dust, hair, lint — and nothing wet.

  • Cabin use only. Use it inside the dry, enclosed part of the boat.
  • Mount the power unit in a dry compartment, away from spray, bilge water and any hatch or locker that takes water.
  • Never vacuum water — no bilge water, standing water, spills, wet sand, damp carpet or anything wet.
  • For wet pickup, use a machine built for wet pickup. A SeaVac is not one.

The full dry-use rule and where to mount it

The range

Four SeaVacs. One question decides between them.

Do you want the vacuum itself in the cabin with the hose plugging into its face, or hidden in a locker with the cleaning points piped to where you need them?

SeaVac Mini (model CS-8)
Self-contained

SeaVac Mini

Model CS-8

Self-contained: the inlet is built into the face of the unit. Plug it into a cabin outlet and it is ready.

  • Bag Y10
  • VacPort No
  • Coverage 900 sq. ft.
From$177.91

See details

SeaVac Mini Pro (model CS-RM)
Piped system

SeaVac Mini Pro

Model CS-RM

Remote-mounted: the power unit lives in a dry locker and a pipe runs to an inlet valve and a VacPort in the cabin.

  • Bag Y11
  • VacPort Yes
  • Coverage 900 sq. ft.
From$207.12

See details

SeaVac Ultra (model RMF-120-E)
Piped system

SeaVac Ultra

Model RMF-120-E

The marine build of the InterVac RM: remote-mounted, 530 air watts and rated to about 1,500 sq. ft.

  • Bag Y08
  • VacPort Yes
  • Coverage 1,500 sq. ft.
From$214.28

See details

Special order

SeaVac Ultra Max

Model RMD

A special-order member of the RM family, built to order. Remote-mounted and piped, and it takes its own bag, the Y09.

  • Bag Y09
  • VacPort Yes
  • Coverage 1,500 sq. ft.
Call or email to order

See details

Which one

Pick by how you want to clean.

If you want the simplest installSeaVac Mini

One cutout, plug it into an outlet, and the hose goes straight into the unit. No pipe, no valves.

 If you want it out of sightSeaVac Mini Pro

The unit hides in a dry locker. An inlet valve and a VacPort go in the cabin and start it automatically.

 If you want the most suctionSeaVac Ultra

530 air watts and about 1,500 sq. ft. of coverage, piped the same way as the Mini Pro.

 If you have been specified an RMDSeaVac Ultra Max

The RM family’s special-order unit. Call or email to order.

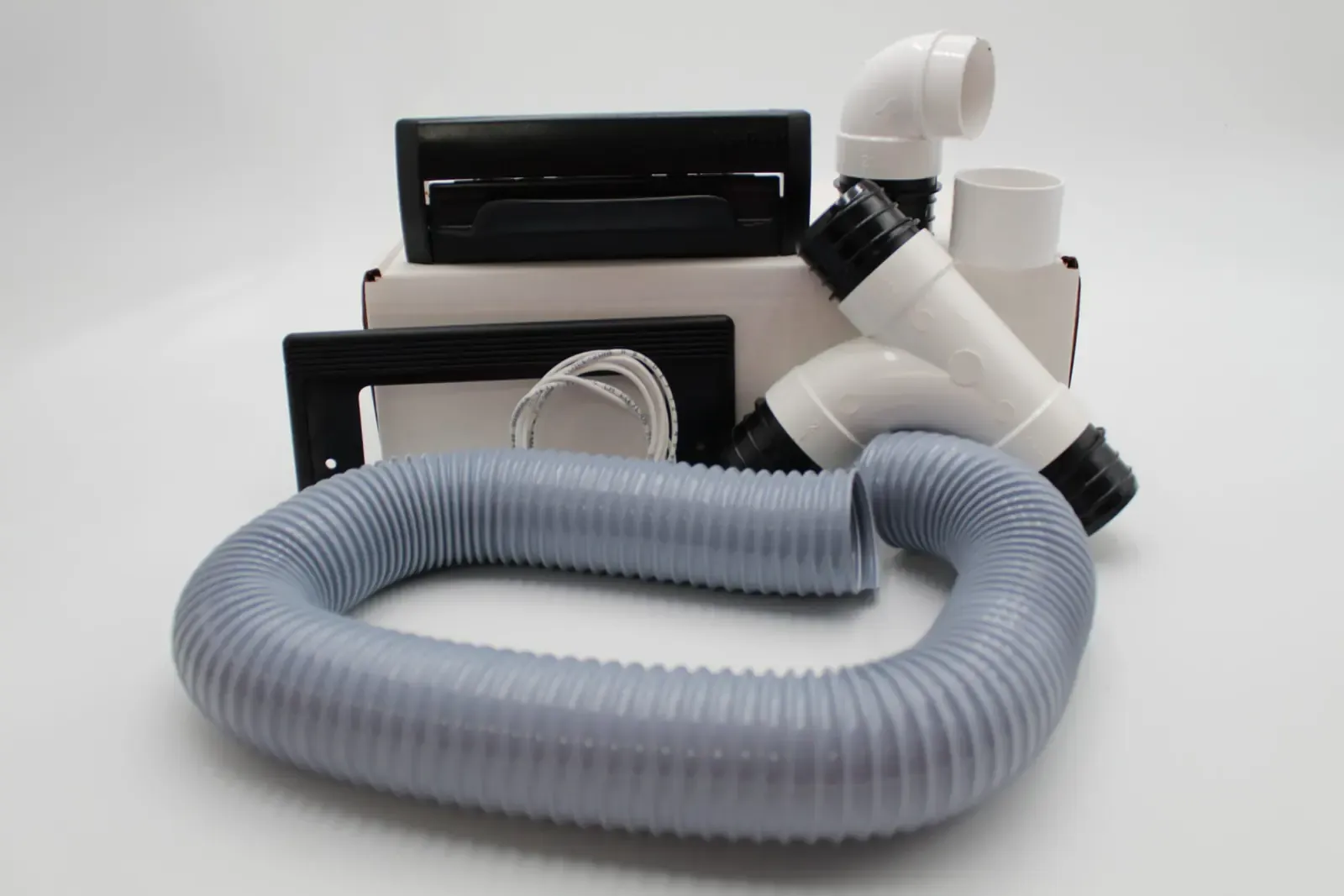

The A-950-X VacPort installation kit: the VacPort, trim plate, fittings, hose and wire

VacPort®

Sweep the sand straight in.

A VacPort takes the place of a dust pan. It is a small door set low in a cabinet or toe kick: open it and the vacuum starts, sweep the dirt in, and it travels down the pipe to the dust bag. The hose does not plug into a VacPort — that is what the inlet valve is for.

VacPorts work on the piped SeaVacs: the Mini Pro, the Ultra and the Ultra Max. They do not work on the Mini, where the inlet is built into the unit.

See the VacPorts

Tool kits

Any 32 mm kit fits every SeaVac.

Hose, wand and tools are not model-specific. If your boat came with the vacuum but no hose or tools, nothing is wrong — the kit is sold separately, and every kit here fits.

Tool kits from $125.05

Bags & filters

Each SeaVac takes one bag.

Mini: Y10-5. Mini Pro: Y11-5. Ultra and older SeaVacs: Y08-5. Ultra Max: Y09-5. They look alike on a shelf and none of them seals in another model.

Bags & filters

Aboard

Where a SeaVac lives on a boat.

Real installs: a locker, a step, a cabinet. Every one is in the dry part of the boat, and the hose does the reaching.

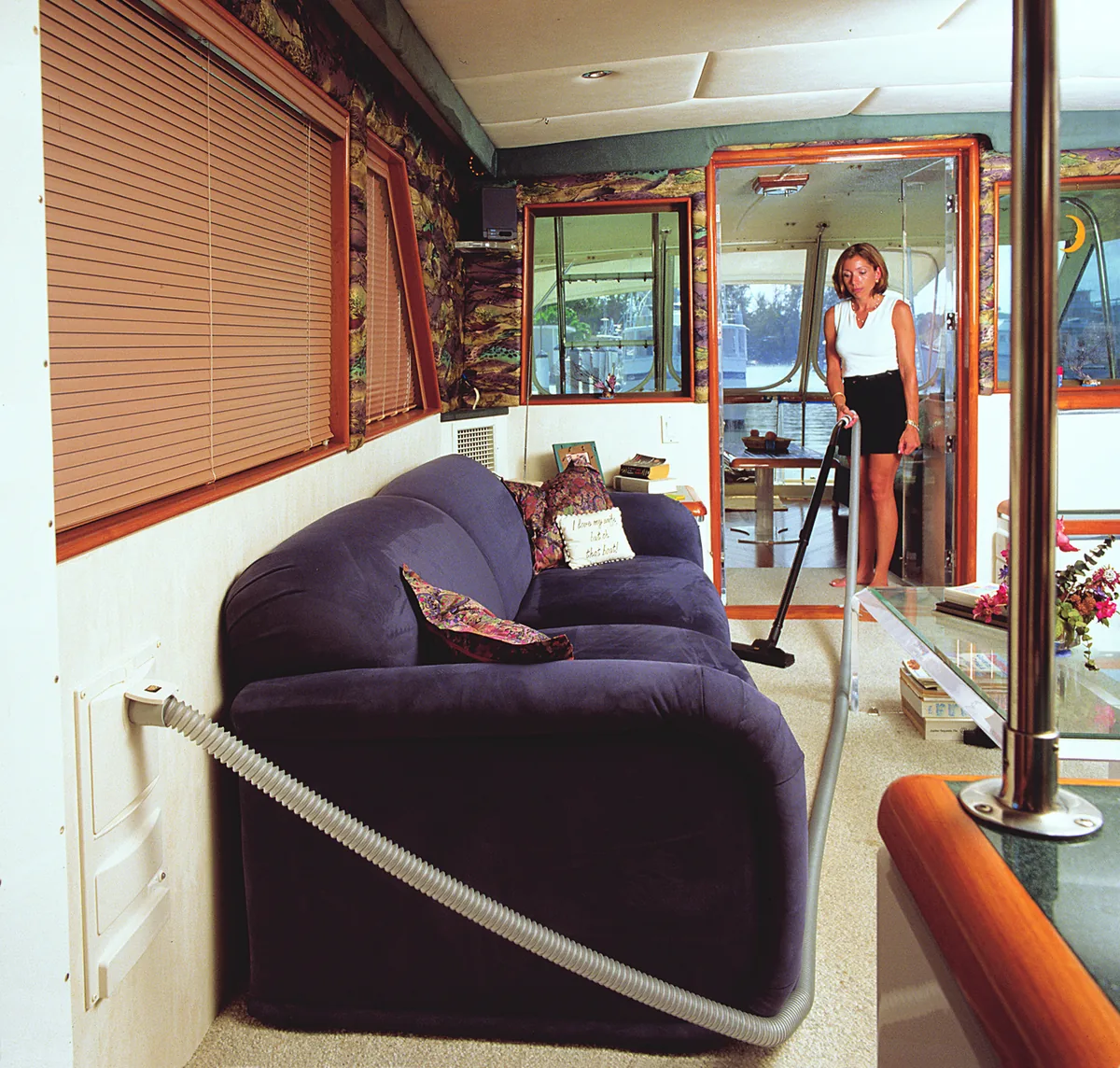

Cleaning the salon. The hose plugs into a wall inlet and reaches across the salon. No machine to carry up the companionway.
Cleaning the salonThe hose plugs into a wall inlet and reaches across the salon. No machine to carry up the companionway.

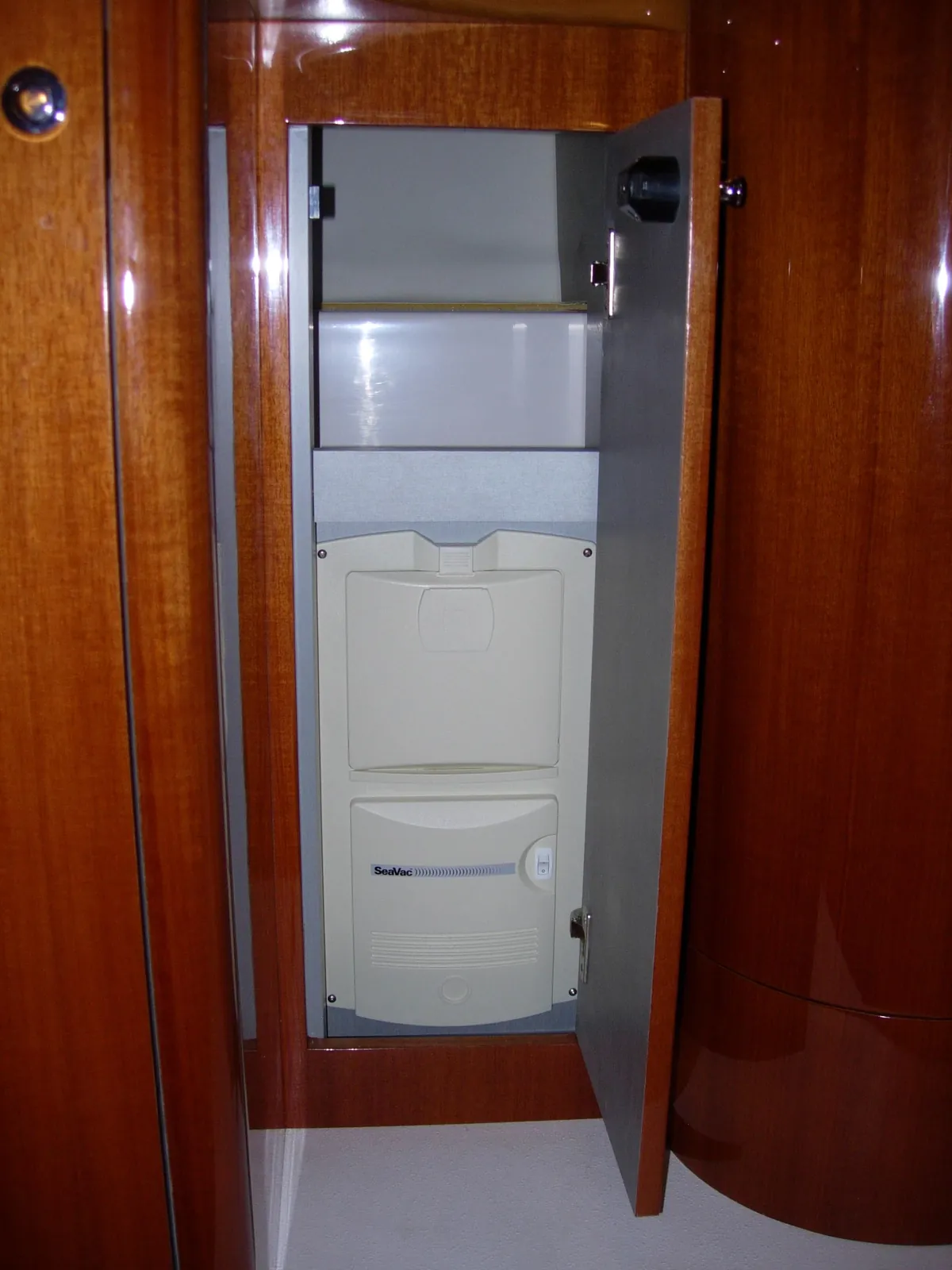

In a teak cabinet. An earlier SeaVac in a locker with its own door. Close it and the power unit disappears into the joinery.
In a teak cabinetAn earlier SeaVac in a locker with its own door. Close it and the power unit disappears into the joinery.

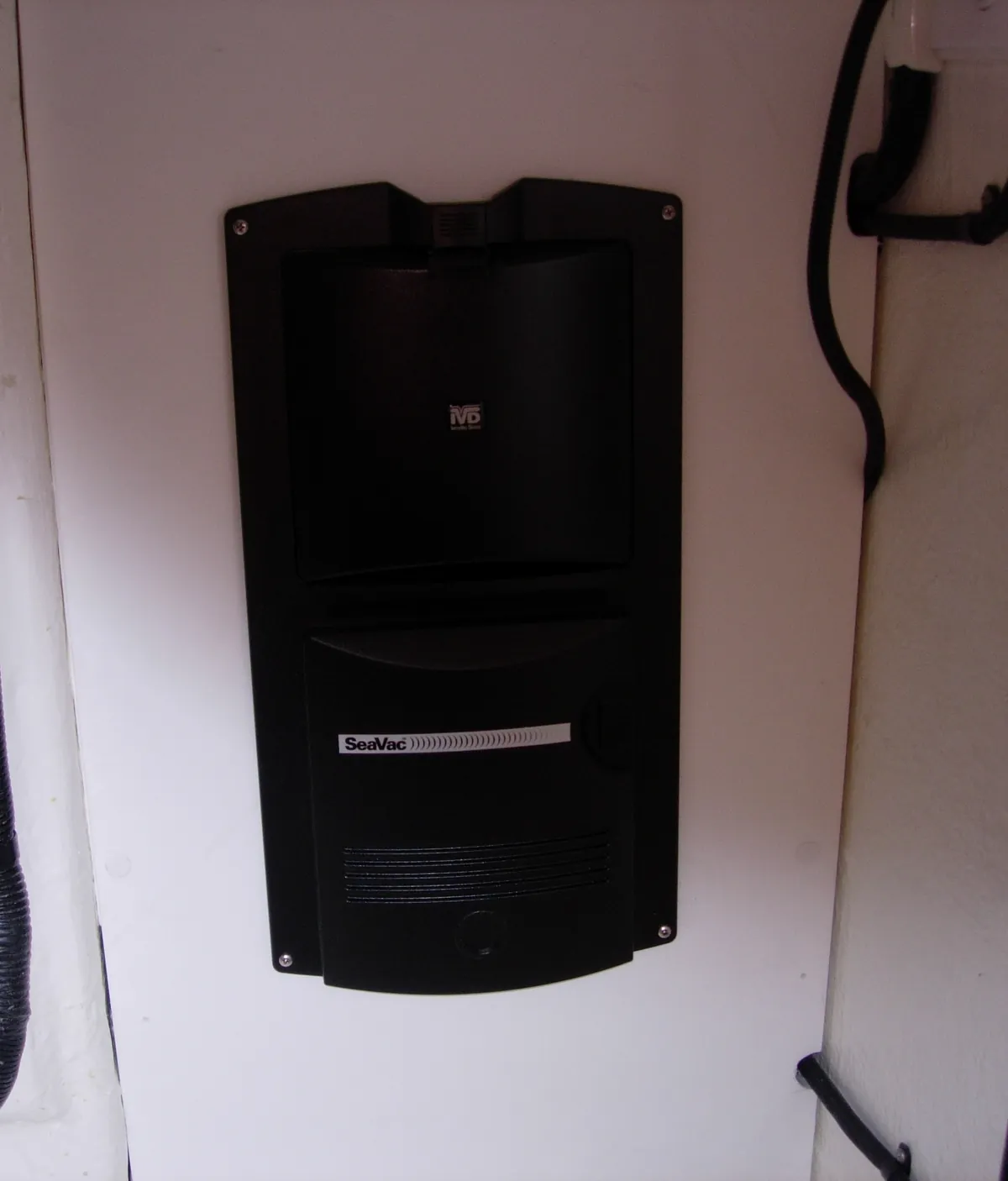

An earlier SeaVac, wall-mounted. The RM-family unit the SeaVac Ultra is built on, fitted in a dry equipment space below deck. The SeaVac name is on the front.
An earlier SeaVac, wall-mountedThe RM-family unit the SeaVac Ultra is built on, fitted in a dry equipment space below deck. The SeaVac name is on the front.

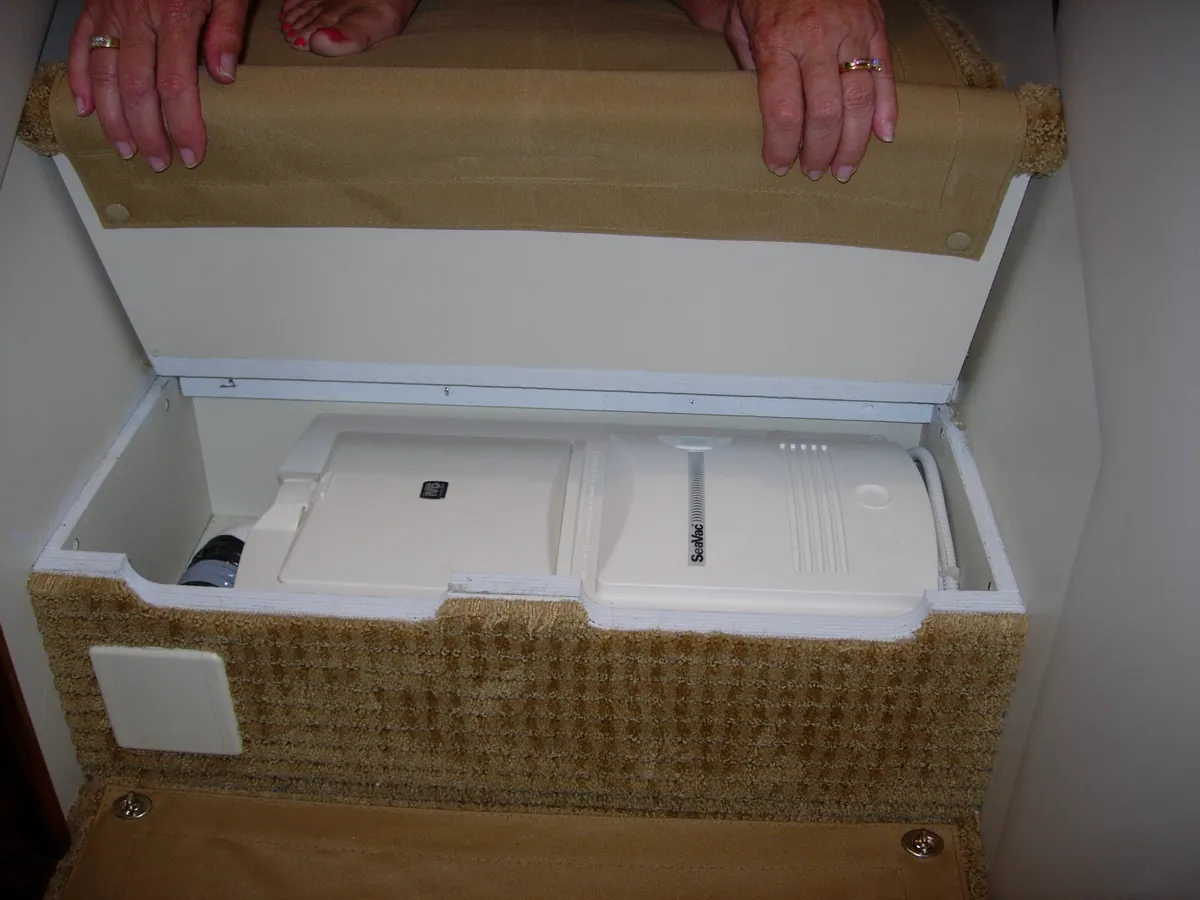

Under a companionway step. An RM-family unit in the dry space under a hinged step, the kind of spot most boats already have.
Under a companionway stepAn RM-family unit in the dry space under a hinged step, the kind of spot most boats already have.

How to plan an install

Questions

Before you buy

Can a SeaVac pick up water?

No. Every SeaVac is a dry vacuum. It is for the dry dirt in a cabin — sand, crumbs, dust and hair. Never use it on bilge water, spills, wet sand, damp carpet or anything wet, and mount the power unit in a dry compartment.

What size boat is SeaVac for?

Cabin boats under 30 feet. The Mini and Mini Pro are rated to about 900 sq. ft. and the Ultra to about 1,500 sq. ft., so coverage is never the limit in a cabin that size — the choice is about where the unit goes and whether you want a VacPort.

What power does a SeaVac need?

AC power: the Mini and Mini Pro run on 110V (220V available, 240V single phase on request) and draw 12A at 60Hz. The Ultra runs on 120V and draws 10A. Aboard, that means shore power, a generator, or an inverter that can carry the load.

What is the difference between an inlet valve and a VacPort?

An inlet valve is where the hose plugs in. A VacPort replaces the dust pan: open its door low in the cabinet and the vacuum starts, then sweep the dirt straight in. Both work only on piped models — the Mini Pro, Ultra and Ultra Max.

I have an older SeaVac. Which bag fits it?

InterVac sold an earlier SeaVac that was the same unit as the InterVac RM. It takes the Y08-5 bag, the same bag as today’s SeaVac Ultra. If the bag collar reads something else, email us a photo of it.

Where do I check out?

Every Buy button takes you to checkout at intervacdesign.com, run by InterVac Design Corp, with the item already in your cart. On the order the unit appears under its model number — for example CS8, CSRM or RM.
